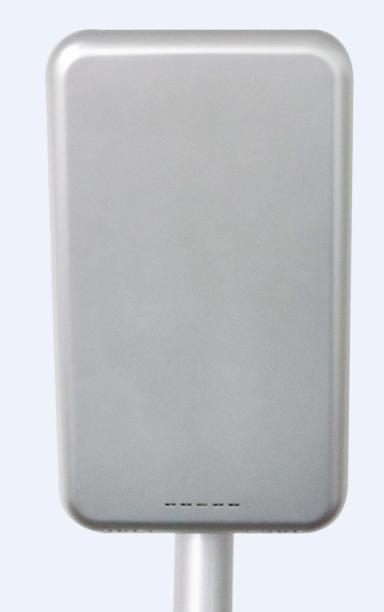

UHF and 2.4GHz hybrid reader RDR-9I00C
-The reading distance is 80 meters of the active label.
-Integrated antenna
-IP56 for outdoor applications
1 Introduction
- 1.1 Products
RDR-9IThe 00C hybrid reader supports both UHF and 2.4GHz.It is a reader that conforms to EPC Gen2 standard and 2.4GHz active tag. It is widely used in vehicle parking management system, attendance system, personnel access control management and inventory management system.
-
- 1.2 advantage
- a passive card with a reading distance of 10 meters,
- The reading distance is 80 meters of the active tag.
- integrated antenna
- IP56
1.3 Products
RDR-9I00Chas five led lights to indicate the reader status. Please refer to the figure belowreaders'Details.
|
color |
definition |
|
blue |
|
|
red |
|
-
- 1.4 reader specifications
|
power supply |
12V/ DC,2A (current) |
|
interface |
TCP/IP |
|
GPIO |
1 Optocoupler Input and Output |
|
dimension |
450 × 265 × 60mm |
|
weight |
2.5kg |
|
operating temperature |
-30°C ~ +70°C |
|
humidity |
10-95% |
|
environmental seal |
IP56,DC ground lightning protection |
-
- 1.5 RFID specification
|
frequency range |
920.5 mhz-924.5mhz& 2.450GHz to 2.458GHz |
|
Run mode |
FHSS |
|
reading range |
Passive tags: 10M max. Active tags: 80M max. |
|
Operation Mode |
Constant, trigger |
|
Mobile tag detection |
≤ 40 Km/h |
|
antennas |
2 Integration, Linear Level& Circular Polarization |

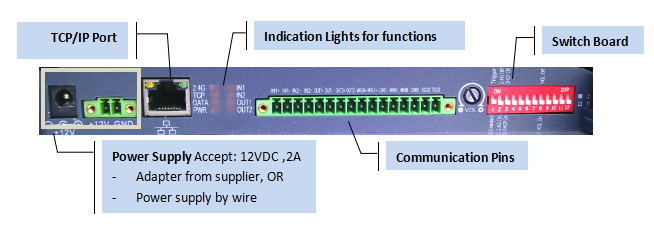

2. Control panel
-
- 2.1 power supply
acceptable power supply is12V DC and 2A. Please usemanufactureror wired power supply.
-
- 2.2 TCP/IP port
and data communication
-
- 2.3 indicator
|
2.4GHz reading lamp |
|
IN1-Turn on the data in the light |
|
TCP communication |
IN2-Turn on the data in the light |
|
|
Data upload |
OUT1-data out lights |
|
|
PWR power supply |
OUT2-data out lights |
-
- 2.4 communication pin
|
Index |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9-16 |
|
Defin |
IN1 + |
IN1- |
|
|
OUT1 + |
OUT1- |
|
|
|
-
- 2.5 switch board
|
Index |
|
DOWN |
Default settings |
|
1 |
Trigger read |
constant reading |
DOWN |
|
2 |
Off 2.4GHz |
Enable 2.4GHz |
DOWN |
|
3 |
DHCP shutdown |
DHCP On |
DOWN |
|
4-7 |
|
|
DOWN |
|
8 |
Voice Off |
Voice On |
DOWN |
|
9 |
|
|
DOWN |
|
10/11/12 |
0 is UP,1 is Down,10 is the maximum value.,12 is the minimum value. |
DOWN/ DOWN/ DOWN |
|
|
000-Set the maximum read range at 2.4GHz.(DOWN/DOWN/DOWN) |
|||
|
001 |
|||
|
010 |
|||
|
011 |
|||
|
100 |
|||
|
101 |
|||
|
110 |
|||
|
111-Sets 2.4GHz Read Range Minimum(UP/UP/UP) |
|||
Restart reader after any changes on the switch board.
- Reader Installation

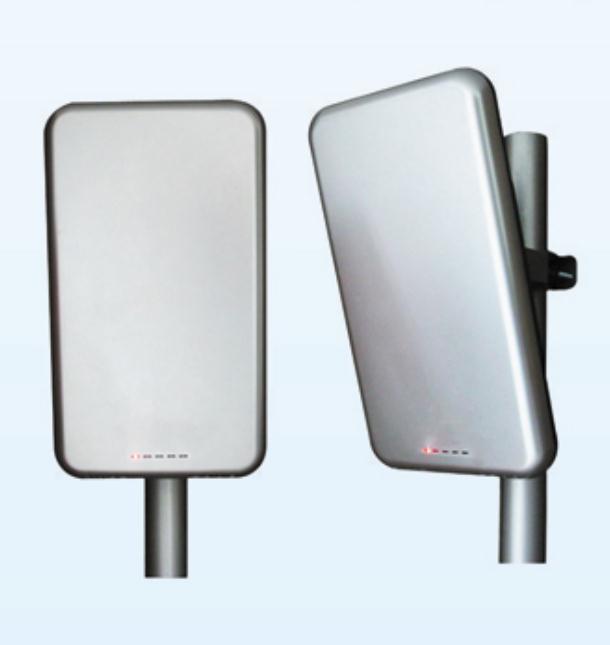

R & DR-9I00C can be fixed in the site in any way they think fit. It is recommended that the installer order the par mounting bracket from the manufacturer to install the reader. Below is the bracket we installed.
readers can be installed on poles or walls. The reader is equipped with a linear horizontal antenna with a limited readable angle. It should be installed at an appropriate height and angle towards the ground to provide optimal performance.

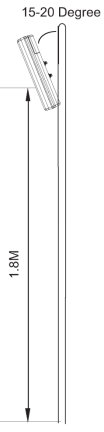

a series of factors will affect the installation height and angle of the reader, including reading distance, lane width, vehicle type, etc. The following figure shows a typical installation for your reference.
