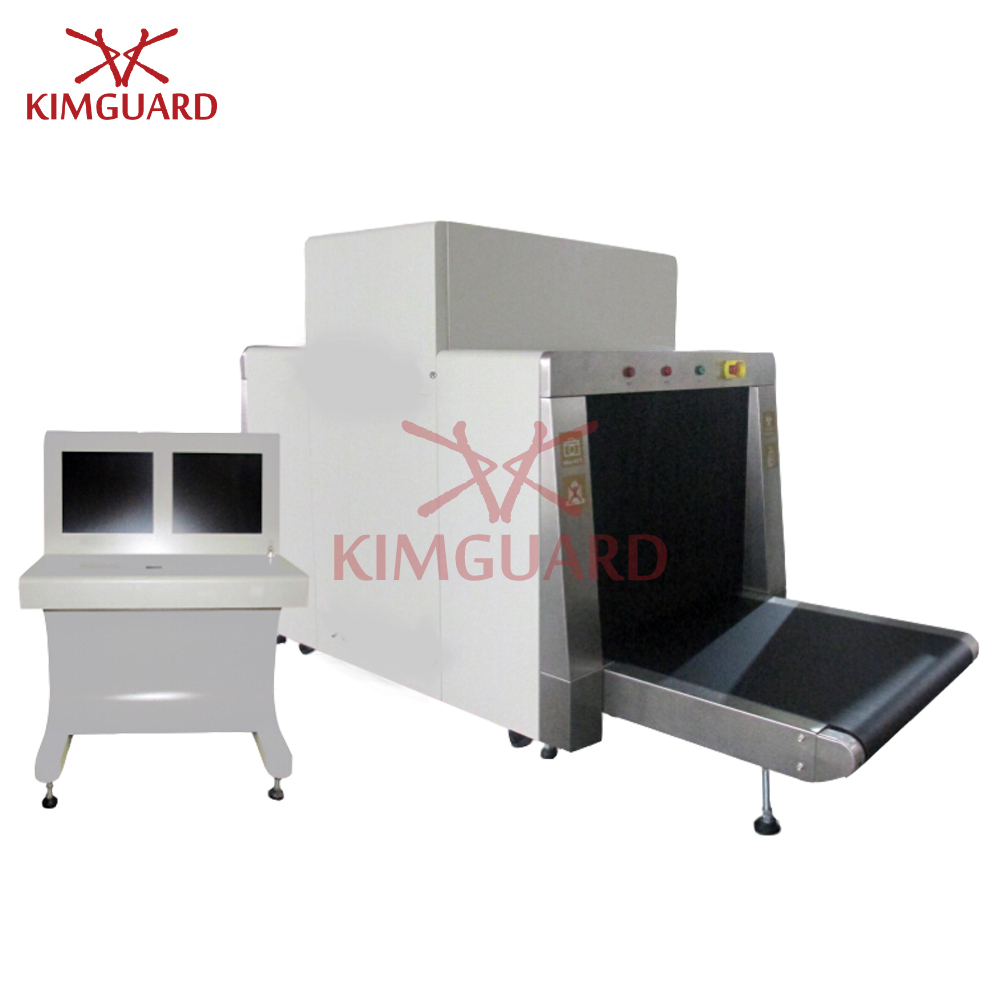

Airport Luggage Security X-ray Luggage Scanner Quick Luggage Inspection System K100100
application:
airport,
transportation terminal,
buildings,
factory (find needles in clothing, shoes, bags),
The court,
The embassy,
Military installations,
prison,
Hotel,
School,
Conference Center,
Security checkpoints,
special event location
function:
tunnel size: 1000(W)× 800(H)mm
Conveyor speed: 0.22 m/s
Load: 200kg
Resolution: 0.0787mm
Penetration: ≥ 40mm steel plate
: 0.202mm
Spatial resolution: horizontal diameter ≤ 1.0mm, vertical diameter ≤ 1.0mm
Height of conveyor from ground: 620mm
Display: Mingji 19-inch LCD monitor
Storage:
500G hard drive can save any image in real time and can store more than 100,000
Any image processing can be performed and the work can be saved continuously.
Noise: < 55dB(A)
Operating system: windowsXP
Single check dose: single check x-ray light source exposure ≤ 1.5 & micro;Gy
| multi-energy function | |
| multi-energy color | Orange-Organic Display, Blue-Inorganic Display, Green-Mixture |
| High Energy/Low Energy | switch displays two kinds of energy, high energy displays metal, Low energy display non-metal |
| Drugs and Explosives Assist | auxiliary detection of drugs, explosives and other dangerous goods |
| sound and light alarm | sound and light alarm |
| environment | |
| operating temperature/humidity | 0 ℃ ~ 45 ℃/20% ~ 95% (non-condensing) |
| storage temperature/humidity | -20 ℃ ~ 60 ℃/20% ~ 95% (non-condensing) |
| voltage | 90V ~ 250V 50/60Hz |
| power consumption | 1.0KW (maximum) |
| noise level | < 55dB (A) |
| x-ray generator | |
| beam direction | top lighting |
| tube current | 0.4 ~ 1.25mA (adjustable) |
| anode voltage | 100~160 kV (adjustable) |
| angle | 90 ° |
| generator cooling/duty cycle | sealed oil bath with forced air/100% |
| Image Performance System | |
| x-ray sensor | L-type photodiode array detector (multi-energy),12-bit |
| Monitoring | High Resolution 19-inch LCD |
| color quality | 24-bit real color |
| Console | fully packaged sealed display, connecting cables can be based on |
| edge enhancement | the contour edge of the object is more obvious |
| super image enhancement | image details are more vivid |
| high penetration intensity display | increases the brightness of dark areas in the image Clearly showing the object behind the highly absorbent object |
| low penetration intensity display | increase the contrast of low absorption quality for clear display |
| magnifying glass | Partial amplification |
| Brightening/dimming | increases image brightness/decreases image brightness |
| image reproducibility | displays the first 20 images and processes any of them. |
| image restoration | Restores the image to its initial state |
| Image storage | stores and processes more than 100,000 images in real time It is running |
| movie safety |
ISO1600 film safety |
| technical standards | technical parameters |
| 1000(W)× 800(H)mm | |
| conveyor speed | 0.22 m/s |
| load | 200kg |
| resolution | 0.0787mm |
| penetration | ≥ 40mm steel plate |
| through resolution | 0.202mm |
| spatial resolution | horizontal diameter ≤ 1.0mm, vertical diameter ≤ 1.0mm |
| conveyor from ground | 620mm |
| Monitoring | Mingji 19in LCD |
| storage | 500G hard disk saves any image in real time, can store more than 100,000 and Any image processing can be performed, And continuous work to save. |
| noise | < 55dB(A) |
| operating system | windowsXP |
| single examination dose | One-time Inspection of X-ray Light Source Radiation ≤ 1.5 & micro; Gy |
| leakage radiation dose rate | away from the outer surface of any device 5cm, The leakage rate of radiation should be be < 0.05 & micro;Gy/H |
payment and delivery:
| Payment Term | |
| Wire Transfer, Official Letter of Credit, Escrow Agreement, Western Union Remittance, etc. | |
| mode of transportation | |
| by plane | 3-5 days, the most expensive |
| by express delivery | 5-7 days, more expensive |
| 15-28 days, the cheapest | |
our company
KimGuard is a professional large-scale manufacturing of various types of industrial metal detectors, security metal detectors, security x-ray luggage scanners, EAS anti-theft systems, and RFID systems. Our main products include metal detectors, handheld metal detectors, food metal detectors, industrial metal detectors, underground metal detectors, car metal detector mirrors, security x-ray luggage scanners, needle inspection and detectors, Eas systems include: RF system, AM system, EM system, EAS anti-theft antenna, EAS tag, remover, accessories and related products...
Our company is located in Shenzhen, China, an industrial city next to Hong Kong.
Our company promises:
-Reasonable price
-Short delivery time
-Meet after-sales service
-Always develop and improve our products
-Always provide the best support for customers
-Full set of OEM and ODM services.
With professional staff, high-quality technicians, and the best service, we hope that we can meet all the requirements of customers and create value for customers, just like creating value for Jinweide.
our service
1. Welcome to OEM: products, packaging...
2. Sample order
We will reply to your inquiry within 24 hours.
4. After sending, we will track the product for you every two days until you get the product. When you get the goods, test them and give me a feedback. If you have any questions about this problem, please contact us and we will provide you with a solution.
packaging and delivery
our most professional packaging
Transport of large trucks to seaports
and international transport cooperation
FAQ
q1. What are your packing conditions?
A: Usually, we pack the goods in neutral white boxes and brown cartons. If you have a legally registered patent,
After receiving your authorization, we can pack the goods in your brand box.
Q2. What are your payment terms?
A: T/T 30% as deposit and 70% before delivery. Before you pay the balance, we will show you photos of the products and packaging.
Q3. What are your delivery conditions?
A: EXW,FOB,CFR,CIF,DDU.
Q4. What is your delivery time?
A: Usually, it takes 1-2 days after receiving the advance payment. The specific delivery time depends on your order and quantity.
Q5. Can you produce according to the sample?
A: Yes, we can produce according to your samples or technical drawings. We can build molds and fixtures.
Q6. What is your example policy?
A: If we have ready-made parts in stock, we can provide samples, but customers must pay the sample fee and express delivery fee.
Q7. Do you test all your goods before delivery?
A: Yes, we did 100 percent test before delivery
Q8: How do you make our business build a long-term good relationship?
A: 1. We keep good quality and competitive price to make sure customers benefit;
2. We respect each customer as our friend, no matter where they come from, we sincerely do business with them and make friends.
