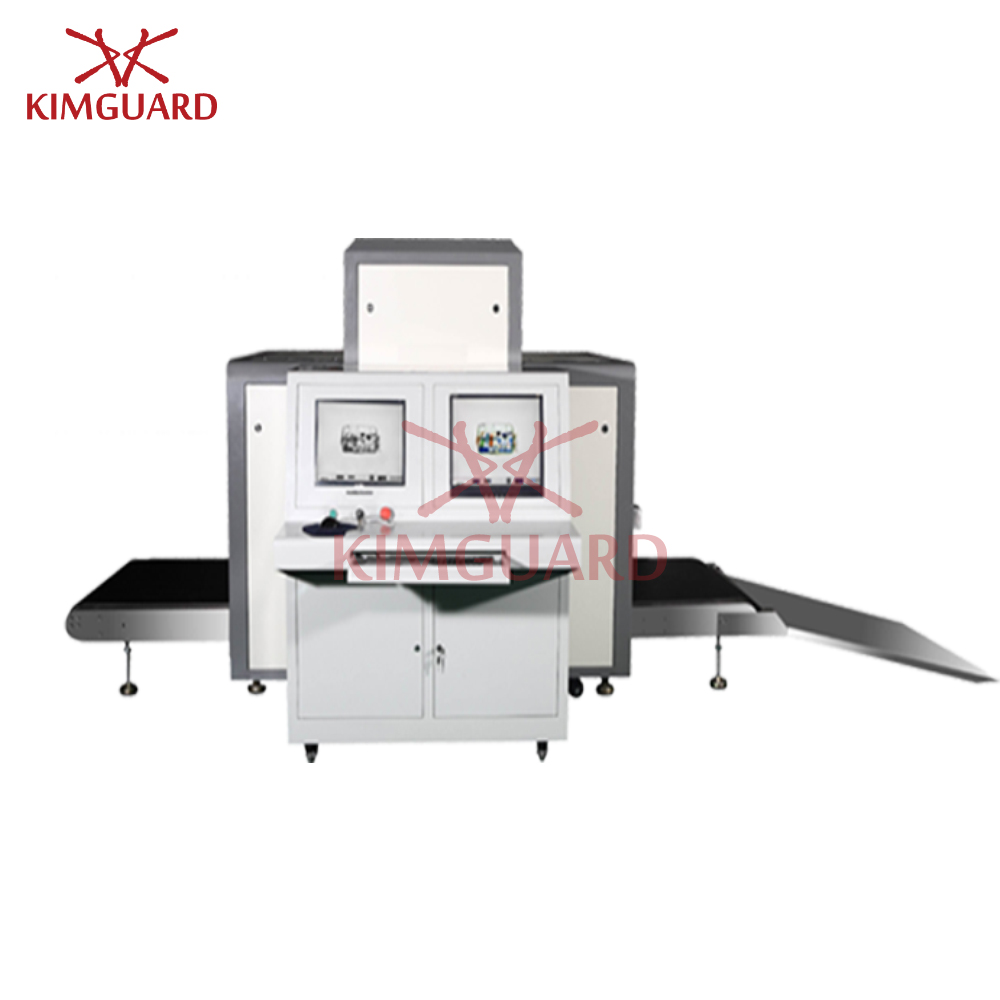

large size luggage x-ray machine low radiation cargo scanner
application:
airport,
transportation terminal,
buildings,
factory (find needles in clothing, shoes, bags),
The court,
The embassy,
Military installations,
prison,
Hotel,
School,
Conference Center,
Security checkpoints,
special event location
function:
tunnel size: 1000(W)× 800(H)mm
Conveyor speed: 0.22 m/s
Load: 200kg
Resolution: 0.0787mm
Penetration: ≥ 40mm steel plate
: 0.202mm
Spatial resolution: horizontal diameter ≤ 1.0mm, vertical diameter ≤ 1.0mm
Height of conveyor from ground: 620mm
Display: Mingji 19-inch LCD monitor
Storage:
500G hard drive can save any image in real time and can store more than 100,000
Any image processing can be performed and the work can be saved continuously.
Noise: < 55dB(A)
Operating system: windowsXP
Single check dose: single check x-ray light source exposure ≤ 1.5 & micro;Gy
| multi-energy function | |
| multi-energy color | orange-organic display, blue-inorganic display, green-mixture |
| High Energy/Low Energy | switch displays two kinds of energy, high energy displays metal, Low energy display non-metal |
| drugs and explosives auxiliary | auxiliary detection of drugs, explosives and other dangerous goods |
| sound and light alarm | sound and light alarm |
| environment | |
| operating temperature/humidity | 0 ℃ ~ 45 ℃/20% ~ 95% (non-condensing) |
| storage temperature/humidity | -20 ℃ ~ 60 ℃/20% ~ 95% (non-condensing) |
| voltage | 90V ~ 250V 50/60Hz |
| power consumption | 1.0KW (maximum) |
| noise level | < 55dB (A) |
| x-ray generator | |
| beam direction | top lighting |
| tube current | 0.4 ~ 1.25mA (adjustable) |
| anode voltage | 100~160 kV (adjustable) |
| angle | 90 ° |
| generator cooling/duty cycle | sealed oil bath with forced air/100% |
| Image Performance System | |
| x-ray sensor | L-type photodiode array detector (multi-energy),12-bit |
| Monitoring | High Resolution 19-inch LCD |
| color quality | 24-bit real color |
| Console | fully packaged sealed display, connecting cables can be based on |
| edge enhancement | the contour edge of the object is more obvious |
| super image enhancement | image details are more vivid |
| high penetration intensity display | increases the brightness of dark areas in the image Clearly showing the object behind the highly absorbent object |
| low penetration intensity display | increase the contrast of low absorption quality for clear display |
| magnifying glass | Partial amplification |
| Brightening/dimming | increases image brightness/decreases image brightness |
| image reproducibility | displays the first 20 images and processes any of them. |
| image restoration | Restores the image to its initial state |
| Image storage | stores and processes more than 100,000 images in real time It is running |
| movie safety |
ISO1600 film safety |
| technical standards | technical parameters |
| 1000(W)× 800(H)mm | |
| conveyor speed | 0.22 m/s |
| load | 200kg |
| resolution | 0.0787mm |
| penetration | ≥ 40mm steel plate |
| through resolution | 0.202mm |
| spatial resolution | horizontal diameter ≤ 1.0mm, vertical diameter ≤ 1.0mm |
| conveyor from ground | 620mm |
| Monitoring | BenQ 19in LCD |
| storage | 500G hard disk saves any image in real time, can store more than 100,000 and Any image processing can be performed, And continuous work to save. |
| noise | < 55dB(A) |
| operating system | windowsXP |
| single examination dose | One-time Inspection of X-ray Light Source Radiation ≤ 1.5 & micro; Gy |
| leakage radiation dose rate | away from the outer surface of any device 5cm, The leakage rate of radiation should be be < 0.05 & micro;Gy/H |
payment and delivery:
| Payment Term | |
| Wire Transfer, Official Letter of Credit, Escrow Agreement, Western Union Remittance, etc. | |
| mode of transportation | |
| by plane | 3-5 days, the most expensive |
| by express delivery | 5-7 days, more expensive |
| 15-28 days, the cheapest | |
