stainless steel safety swing gate
2) Flexible keys to set the performance of the device
3) Intelligent anti-pinch function, automatic stop or rebound
4) Multi-mode alarm function, including illegal intrusion, anti-intrusion, trailing, overtime alarm, etc;
5) Anti-shock function, when no signal to open the brake is received, the stopper arm is automatically locked;
Product parameters:
|
material |
1.2mm SUS304 |
|

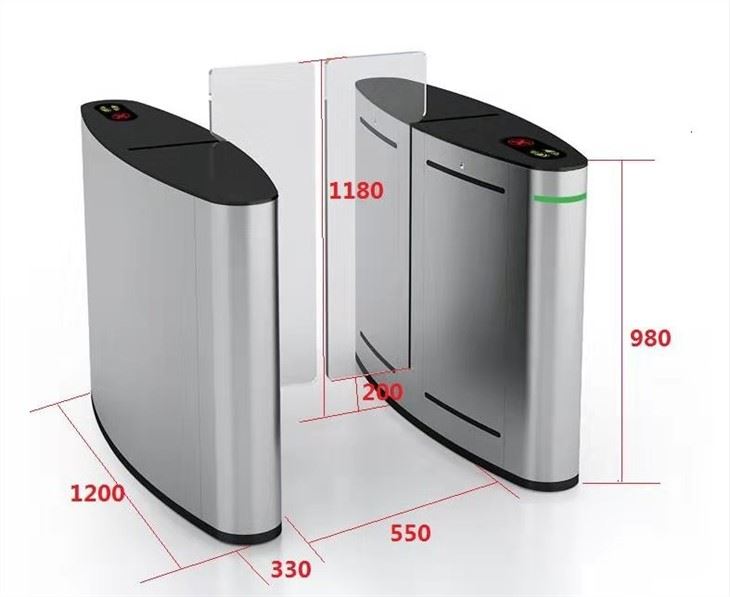

size |
1200 × 330 × 980mm |
|
sensor |
4 pairs |
|
passing speed |
35 p/m |
|
by width |
550mm |
|
input voltage |
100V to 240V |
|
motor type |
24V DC brushed motor |
|
environment |
-20~50 ℃ |
|
motor power |
30W |
|
input signal |
dry contact/RS485 |
Functions and Features
1) It has the functions of fault self-checking and logic judgment, which is convenient for users to maintain and debug functions;
2) Flexible key setting equipment performance, up to dozens;
3) Intelligent anti-pinch function, when the block arm resets someone or obstacles, it will automatically stop or rebound, and send out an alarm signal at the same time;
4) Multi-mode alarm functions, including illegal intrusion, intrusion prevention, tailing, and overtime alarm;
5) Anti-shock function, when no signal is received to open the brake, the stopper arm is automatically locked;
6) Turn off the alarm function for reverse intrusion. When swiping the card forward, someone will first stop the wing from turning off the reverse intrusion and give an alarm at the same time;
7) Flexible flow indication function, high-brightness indicator light and humanized prompt function make the channel more distinctive;
8) The normally open and normally closed mode can be adjusted and easily controlled by dialing the number or external manual button;
