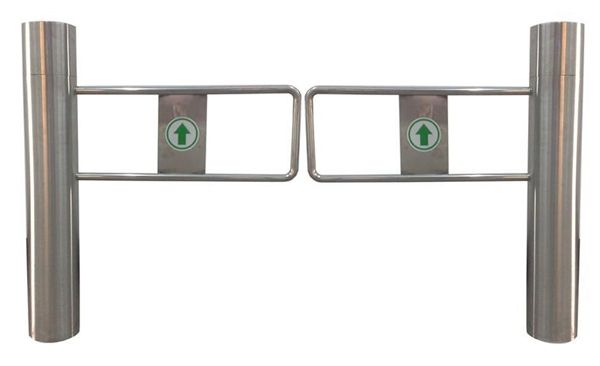

Intelligent Radio Frequency Identification Rotary Gate Access Control

Specification

material: SS304, thickness not less than 1.2mm

manufacturing technology: CNC laser cutting

barrier material: acrylic glass, SS304, etc

Gate opening and closing time: ≤ 4S

through speed: normal open-35persons/min; normal closed-35persons/min

communication connection: 12v dry relay

power: AC220C ± 10V,50hz

motor: DC brushless motor, 140W/24V

communication distance: ≤ 1200M

10) Input connection: 12v level signal or pulse width> 100ms DC12V pulse, current> 10Ma

11) Infrared sensor: 9 or 10 pairs

12) Relative humidity: <95%, no density

13) Operating temperature: -15°C -60°C

14) Working environment: indoor and outdoor (with canopy)

15) Color: SSB(US32D)-stainless steel wire drawing/powder coating (optional), or other colors you like

16) Protection grade: IP54

Function

1. Problem-self-test function.
2. Multiple choices of working methods: two-way card reading; one direction to read the card, the other not to read; one direction to read the card, the other free. Unidirectional photocell control passes through and closes. The working mode can be set in the control panel.
3. When the power is off, the arm will automatically turn on and power on again, and the arm will automatically hold it.
4. When the card is effectively read and passengers pass, the arm can be turned off from 1-60 seconds delay, which can be set in the control panel.
5. Automatic repositioning function: After reading the card, if the passenger fails to pass within the specified time period, the full-height revolving door will cancel the right to pass. Managers can set the prescribed passage time period.
6. If the passenger pass does not have a card reading or a valid card reading, the flap barrier will sound an alarm until the passenger returns from the swing barrier and then takes a valid card for passage.
7. The swing barrier is a long-term decentralized control problem interfacing with the 485.
8. Anti-rush function: If there is no bill, the arm will hold it tightly.
9. Double anti-pinch function: photocell anti-pinch and mechanical anti-pinch. When a passenger passes a swinging obstacle, the photocell detects this and does not turn off. After passengers pass, the arm will automatically close. During repositioning, if the arm encounters any obstacles, the arm will automatically recover or stop working for a period of time with a small force. It will also call the police.
10. Swing barrier has a standard electrical interface for integrating various readers and writers.
11.Swing barrier can calculate how many passengers pass through and display it in the LED display.
12. Direction display to guide the direction of passengers.
13. Card reading with or without memory function.
14. The swing barrier can control the internal population in the control of the software.
