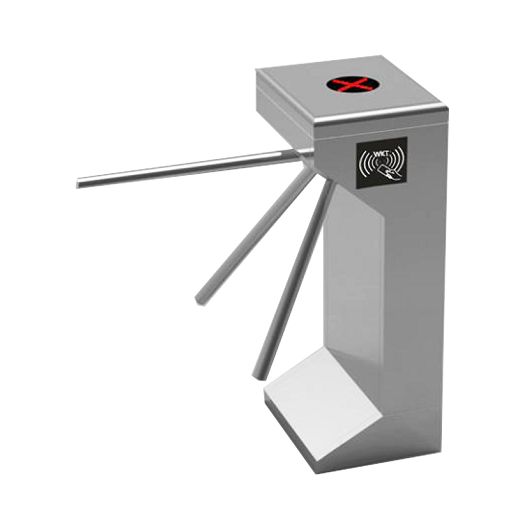

safety tripod
2. Durable brushless DC motor, highly integrated mechanism, 100% heavy-duty operation.
3. Put down your arm when the power is off, and lift your arm automatically when the power is on.
4. Compatible with other access control systems.
5. Easy installation and maintenance.
turnstiles
Reasonable and reliable design, low noise, automatic buffering of internal hydraulic devices, stable operation and long service life.
●With a power drop function, it can also carry an additional remote control lever, which manages and handles emergency situations.
● Prompt led light direction.
● Can be set "with memory" or "without memory" function (when set to "with memory", the brush can be used for scenic tickets too many people occasions).
● It has an automatic reset function, that is, the access lock permission. When setting, the three are not interlocked, and the three roller doors automatically cancel this permission and return to the locked setting state.
● Waterproof, sun protection, cold protection and high temperature.
● Personalized interface installation, compatible with IC, id card and other smart cards.
● Unified and standard external electrical interface is freely hinged with various reading and writing devices, which is convenient for system integration.
advantage
● Matte finished shell surface, outdoor dustproof and rainproof design.
● Durable brushless DC motor, highly integrated mechanism, 100% heavy duty operation.
●Put down the arm when the power is off, and automatically raise the arm when the power is on.
● Compatible with other access control systems.
● Easy installation and maintenance.
Product Size
technical parameters
|
Materials |
stainless steel 304, thickness 1.5mm |
|
dimension |
420*330*980mm (length * width * height) |
|
Channel Width |
<= 550mm |
|
Bar diameter |
40mm |
|
opening or closing time |
1.5 seconds |
|
Direction of traffic |
one-way or two-way |
|
channel flow |
30-40 channels per minute |
|
Motor |
DC brushless motor (24v) |
|
Emergency mode |
Free exit when fire signal is triggered |
|
Power |
AC220 ± 10% V,50hz |
|
control voltage |
DC24V |
|
power consumption |
40W |
|
working temperature |
-20 ℃ -70 ℃ |
|
Operating humidity range |
≤ 90% non-condensing |
|
life |
more than 3 million times |
|
fault |
10 seconds |
|
ODM/OEM Service |
available |
|
Usage |
Indoor or Outdoor |
|
gross weight |
65kg/compact carton packing |
|
Warranty |
one year |

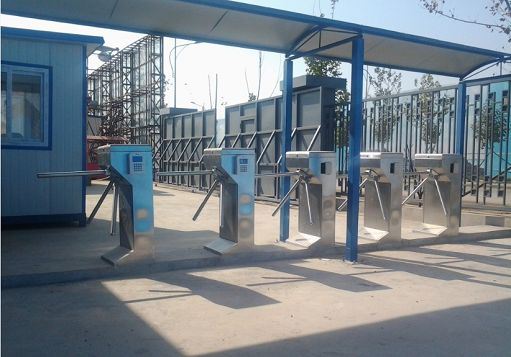

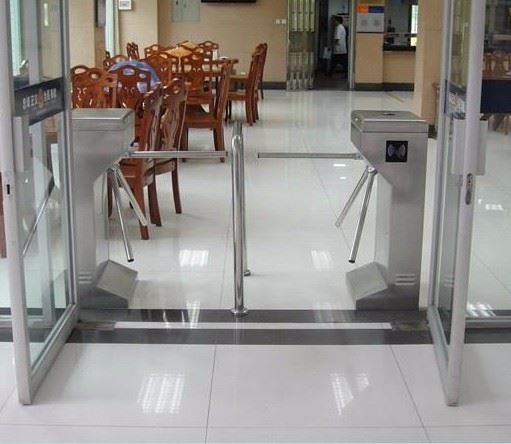

Project Installation
